Three Phase Oil Immersed Transformer

Three Phase Oil Immersed Transformer

  • Overview
  • Parameter
  • Inquiry
  • Related Products

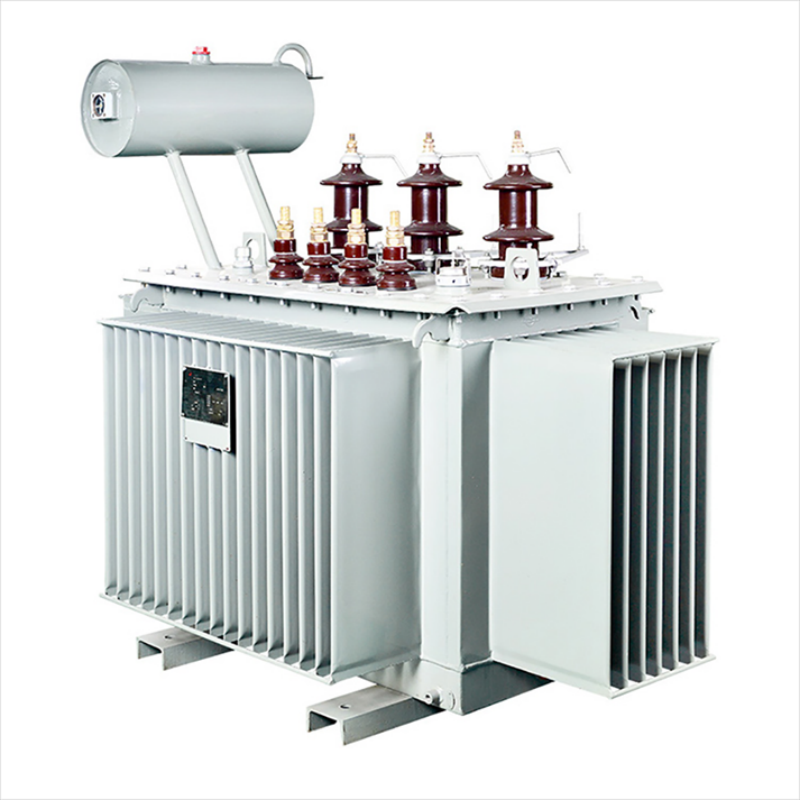

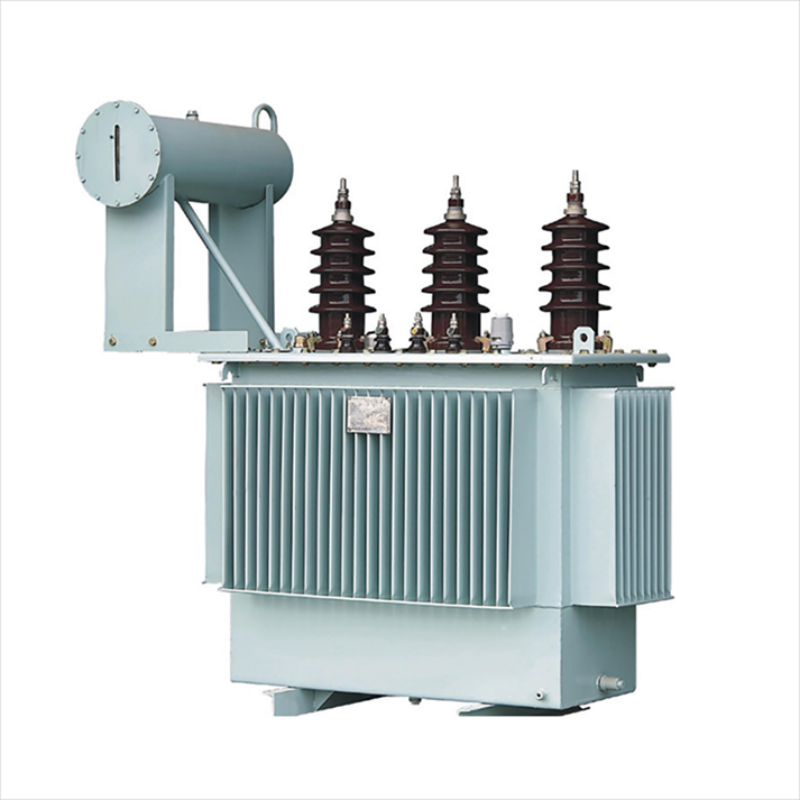

Product Display:

Ouroil-immersed distribution transformers are important equipment in the distribution network and power supply and distribution systems of industrial & mining enterprises.  10kv 20kv 35kv class three phase oil-immersed distribution transformer has hermetically sealed type and conservator type.

This product implements nationalstandard GB1094-1996 the power transformer"and GB/T6451- 2008 the three-phase oil immersed power transformer technical parameters and requirements".S11 series transformer is the latest series of low loss copper windings products,the products using high-quality materials, in coil implement body and insulation,using new craft, new material, thus made racing. load loss reduced significantly, and performance and structure more reliable and superior.


Company Profile:

Jiangsu First Power Co., Ltd. is located in Haian City, Jiangsu Province where close to Shanghai. Jiangsu First Power Co., Ltd. was established in2006, owns more than 50 engineers and 500 employees , occupies 60,000 square meter , annual sales is more than USD30,000,000. We have very strong production ability , advance production technology,professionally in production of dry transformer, oil immersed transformer, auto-transformer , isolation transformer, substation , switchgear, distribution box, transformer winding of enameled wire. Since origination,it has been persisting in taking the science and technology as the forerunner,the abundant technology as a backing,and positively introducing the overseas advanced technology,unceasingly improve and consummate the products, many years specialized management,the product best-selling nation,While exports to Myanmar,India,Russia,Indonesia,Thailand and other countries in Southeast Asia and Africa, some of them are well sold to the world meanwhile receive high praise from the majority of customers.


Product advantage:

1.The product has the advantages of small loss, low noise and high efficiency, which can achieve good energy saving effect and reduce pollution.

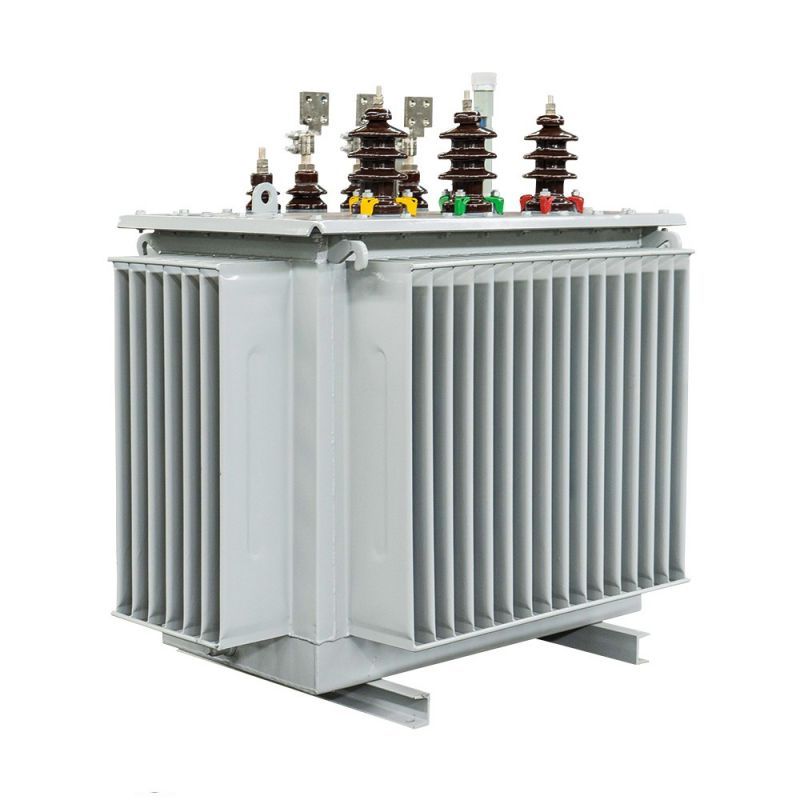

2. The fully sealed transformer eliminates the need for oil storage tank. The change of oil quantity is automatically adjusted and compensated by the elasticity of the corrugated board of the corrugated tank.
3. The transformer is isolated from the air to prevent and slow down the deterioration of oil and insulation aging.

Company advantage:

We are a big professional manufacturer of transformer, substation,HV and LV switchgear, established in 2006 year.400V~220kVOil Immersed Power Transformer are all available here.And the products match IEC, IEEE, ANSI, , GOST standard, we have high quality, fast delivery, guarantee after-sales service and factory price.

Technical Data for 35KV Three Phase Oill-Immersed Distribution Transformer
Rated Power  (KWA)Hlgh VoltepeKW)Velta   (KW)Vacttor Gor5hort Circuitdepencence()ra+1    Woss (W)       oad  Loss          WNo loadCurent
8003538.54446or others63    66    10    10.5    12.47   13.8Yd11Ynd116575980        93501.05
10001160       115001
12501380       1390009
16001660       166000.85
20002030       183000.75
25002030196000.75
31503010       230000.7
40003610       272000.7
50004270       312000.6
63005110       349000.6
B0007000       383000.5
00008260451000.5
1250010800      536000.5
1600011900      655000.5
2000014100      79100       0.5
2500016730      935000.4
3150020000      112200       0.4
Note:The above data is only subject to our standard design.special requirement can be customized
