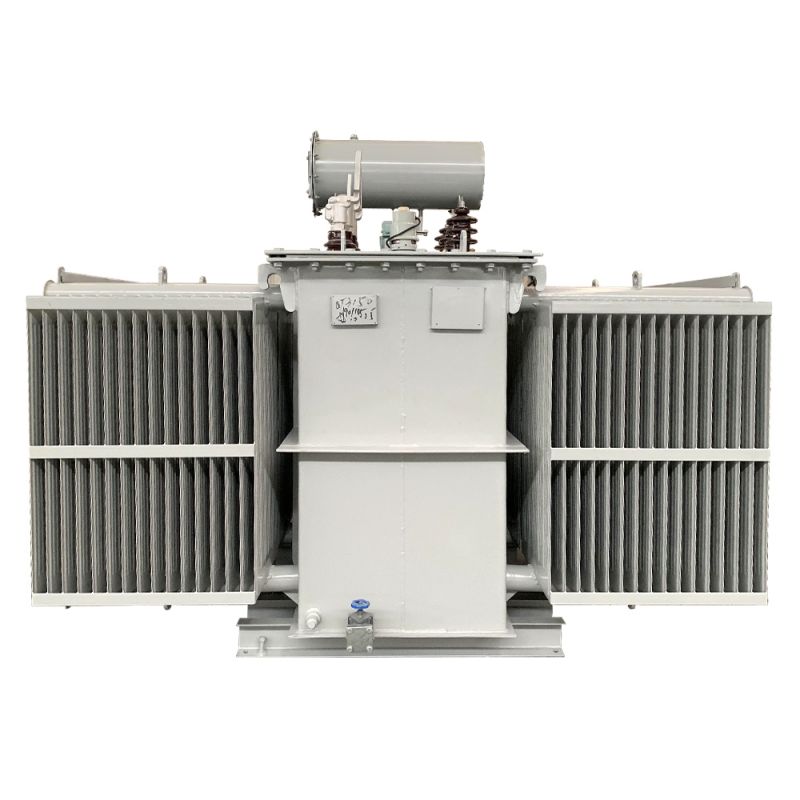

Oil Immersed power Transformer

Oil Immersed power Transformer

  • Overview
  • Parameter
  • Inquiry
  • Related Products

Product Display:

High-voltage  transformers  are  designed  and  optimized   by  absorbing  and   utilizing  advanced technologies  at   home  and abroad  to  optimize  the  transformer  core,coil,body,leads,fuel  tank,and  other  components,which  features  follow  low  partial discharge,low   loss,low   noise,light-weight,and  high   reliability.Its   excellent   performance   has   won    high    praise    from users and relevant experts.

This  product  has  the   characteristics  of  stabiity,economy,and  environmental   protection,and  is suitable  for   power  plants,

substations,large  industrial  and  mineral  enterprises,etc.


Company Profile:

Jiangsu First Power Co., Ltd. is located in Haian City, Jiangsu Province where close to Shanghai. Jiangsu First Power Co., Ltd. was established in2006, owns more than 50 engineers and 500 employees , occupies 60,000 square meter , annual sales is more than USD30,000,000. We have very strong production ability , advance production technology,professionally in production of dry transformer, oil immersed transformer, auto-transformer , isolation transformer, substation , switchgear, distribution box, transformer winding of enameled wire. Since origination,it has been persisting in taking the science and technology as the forerunner,the abundant technology as a backing,and positively introducing the overseas advanced technology,unceasingly improve and consummate the products, many years specialized management,the product best-selling nation,While exports to Myanmar,India,Russia,Indonesia,Thailand and other countries in Southeast Asia and Africa, some of them are well sold to the world meanwhile receive high praise from the majority of customers.


Product advantage:

1. The product has the advantages of small loss, low noise and high efficiency, which can achieve good energy saving effect and reduce pollution.
2. The fully sealed transformer eliminates the need for oil storage tank. The change of oil quantity is automatically adjusted and compensated by the elasticity of the corrugated board of the corrugated tank.
3. The transformer is isolated from the air to prevent and slow down the deterioration of oil and insulation aging.

Company advantage:

We are a big professional manufacturer of transformer, substation,HV and LV switchgear, established in 2006 year.400V~220kVOil Immersed Power Transformer are all available here.And the products match IEC, IEEE, ANSI, , GOST standard, we have high quality, fast delivery, guarantee after-sales service and factory price.

Technical Data for 110KV Three Phase Duplex Winding OLTC Power Transformer
Rated Power(XWA)High Voltape(KV)w VollaWVrcor GrrUFShort Circuitdependence周Loss (W)No loadCument
No-load  Lass Lead  LossW             Wi
6300110±8x1.25%636.610.511YNd1110.510000      360000.8
800012000      450000.8
1000014200      530000.74
12500016800      630000.74
1600020200      770000.6
2000024000      930000.69
2500028400      1100000.64
3150033800      1330000.64
4000040400      1560000.58
5000047800      1940000.58
6300056800      2340000.52
Note;The above data is only subject to our standard design,special requirement can be customized
